Product Specifications

Metric
Imperial
LENGTH 10 895 mm
WHEELBASE 6 350 mm
WIDTH 3 580 mm
HEIGHT 3 225 mm
GROUND CLEARANCE 710 mm
WEIGHT 24 650 kg
ENGINE Tier 4f Tigercat FPT N67
195 kW (262 hp) @ 2,200 rpm
ENGINE Tier 2 Tigercat FPT N67
198 kW (266 hp) @ 2,100 rpm
AIR FILTRATION Precleaner and 2-stage engine air cleaner
TOP SPEED 16 km/h
COOLING Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser
FAN Flexxaire® variable pitch, reversing
FUEL CAPACITY 305 L
DEF CAPACITY 46 L
TRANSMISSION Single-speed mechanical
Variable speed hydrostatic
(2) Variable displacement motors
AXLE front Tigercat OB17, outboard planetary, barrel differential
+/- 15° oscillation

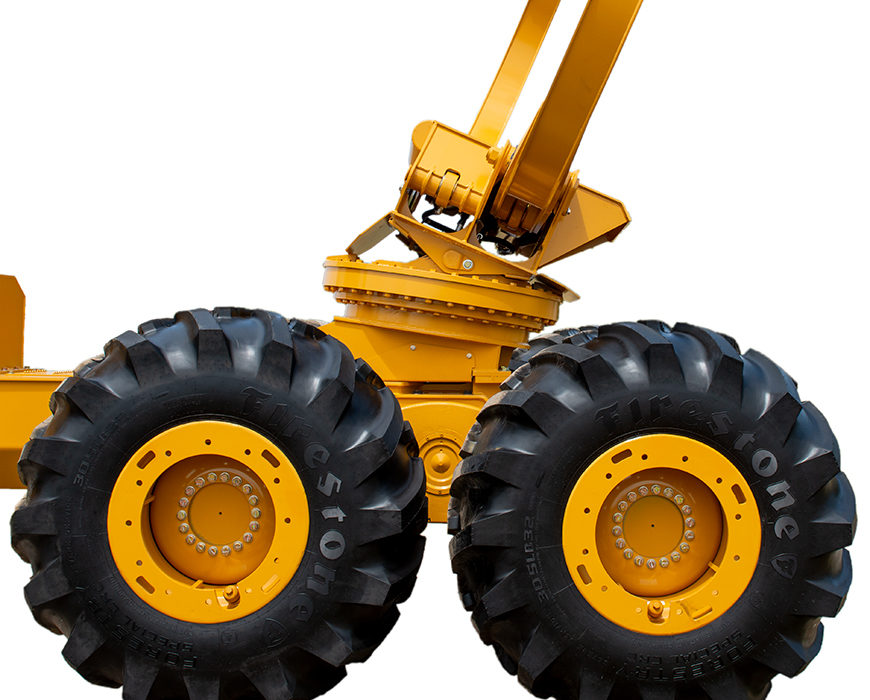

AXLE rear Tigercat WOB17 wide-spread bogie, outboard planetary, barrel differential
DIFFERENTIAL LOCKS Independent front and rear
PUMP, DRIVE Piston
PUMP, MAIN 1 Piston for all machine functions
PUMP, MAIN 2 Gear for cooling
FILTRATION (4) Spin-on, 7 micron full-flow
CYLINDERS, STEER (2) 85 mm (3.25 in) bore
CYLINDERS, BLADE (2) 90 mm (3.5 in) bore
RESERVOIR 126 L
DYNAMIC BRAKING Hydrostatic
SECONDARY BRAKES Enclosed, oil cooled
PARK BRAKE Enclosed, oil cooled
Spring applied, hydraulic release

+ ALL

Resources

loader-icon

Lowland Logging


Dopson is a well-known name around the Tigercat factories. Charlie and Timmy Dopson are partners of Dopson Timber LLC and their enthusiasm and loyalty to the Tigercat brand is undeniable.


A photo of Dopson Logging's crew

Forestry Tire Care


Forestry tires are expensive. Take some simple, common-sense precautions to protect your investment and get the most service life and maximum safety out of your tires.


forestry tires skidder

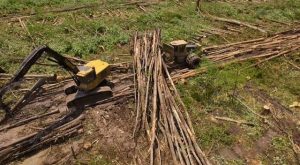

C640E Clambunk with S860C Shovel Logger


Tigercat C640E clambunk skidder working with an S860C shovel logger on log mats in a lowland logging operation. Massive drags delivered to a 250D loader at roadside.

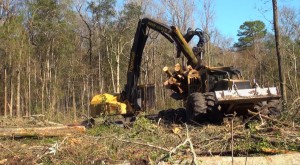

Clambunk Skidder and Shovel Logger
