Product Specifications

Metric
Imperial

Dimensions

LENGTH 8 180 mm
WHEELBASE 3 050 mm
WIDTH 2 540 mm
HEIGHT 3 355 mm
GROUND CLEARANCE 430 mm
FRAME ARTICULATION +\- 45°
WEIGHT 16 375 kg

Power

ENGINE Tier 4f Tigercat FPT C87 Tier 4f
275 kW (370 hp) @ 1,800 rpm (rated)
AIR FILTRATION Precleaner and 2-stage engine air cleaner
COOLING Cross-flow
Side-by-side aluminum radiator, oil cooler, charge air cooler and A/C condenser
FAN Hydraulically driven automatic variable speed with automatic reversing cycle
FUEL CAPACITY 570 L
DEF CAPACITY 80 L

Power Train

TRANSMISSION Tigercat WideRange® drive
Variable speed hydrostatic
(2) Piston motors, infinitely variable
AXLES Tigercat IB15 inboard planetary, barrel differential
Front fixed, rear oscillating +/- 15 deg

Hydraulic System

PUMP, DRIVE Piston
PUMP, BOOM Gear
PUMP, STEERING Gear
PUMP, FAN Gear
PUMP, ATTACHMENT Piston
FILTRATION (6) Spin-on, 7 micron full flow
CYLINDERS, STEER (2) 75 mm (3 in) bore
CYLINDERS, BOOM (4) 115 mm (4.5 in) bore lift and tilt
RESERVOIR 186 L

Brakes

DYNAMIC BRAKING Hydrostatic
SECONDARY BRAKES Enclosed, oil cooled
PARK BRAKE Driveline mounted wet disc
Spring applied, hydraulic release

+ ALL

Resources

loader-icon

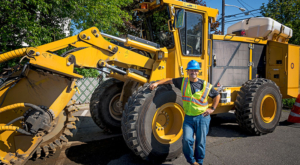

Street Trenchers Make Inroads on Long Island


The Tigercat T726G trencher is tearing it up on the roads of Long Island, New York. BTB talks to a couple of customers to get their impressions of the machines and street trencher dealer, StreetWorksUS based in Durham, Connecticut.

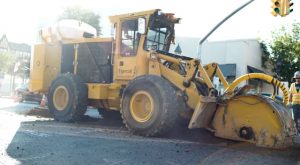

Street Trenchers in Long Island


Watch Tigercat street trenchers opening up the mean streets of Long Island with both asphalt and reinforced concrete road surfaces and strata. Find out from our customers why the T726G trencher is an asset and a key piece of equipment in utility infrastructure installation applications.

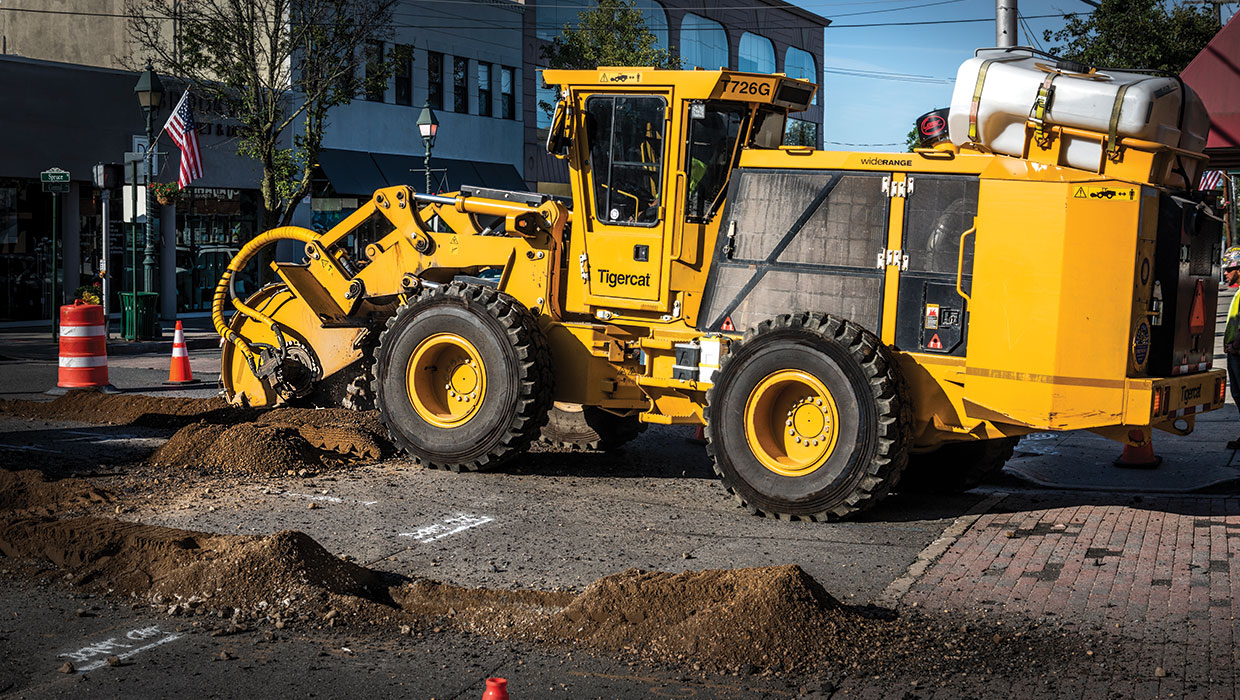

A Tigercat T726G street trencher works at an intersection.
