Product Specifications

Metric
Imperial

Dimensions

LENGTH transport 16,5 m
WIDTH 3,63 m
HEIGHT 13,7 m
HEIGHT transport 3,80 m
GROUND CLEARANCE 610 mm
WEIGHT 54 885 kg
TAIL SWING RADIUS 4,22 m

Power

ENGINE Tier 4f Tigercat FPT C87
305 kW (409 hp) @ 2,100 rpm (rated)
330 kW (442 hp) @ 1,800 rpm (peak)
ENGINE Tier 2 Tigercat FPT C87
300 kW (402 hp) @ 2,100 rpm (rated)
330 kW (442 hp) @ 1,800 rpm (peak)
AIR FILTRATION Precleaner, 2-stage engine air cleaner
COOLING Aluminum radiator, oil cooler, charge air cooler, A/C condenser
Integrated cooler guard
FAN Hydraulically driven, automatic variable speed, reversible
FUEL CAPACITY 1 130 L
DEF CAPACITY 135 L

Top Speed

LOW RANGE 2,2 km/h
HIGH RANGE 4,5 km/h

Hydraulic System

PUMP, MAIN Piston, load sensing
PUMP, FAN Piston
PUMP, CHARGE/PILOT Gear
PUMP, CASE Gear
PUMP, WINCH (3) Piston, closed loop
FILTRATION, RETURN (2) In-tank, 10 micron full flow
FILTRATION, CHARGE/PILOT (5) Spin-on, 6 micron full flow
CYLINDERS, BOOM (2) 180 mm (7 in) bore
CYLINDERS, STABILIZER BLADE (2) 180 mm (7 in) bore
CYLINDERS, BUCKET 150 mm (5.9 in) bore
CYLINDERS, CABLE TENSIONER (2) 57 mm (2.25 in) bore
RESERVOIR 320 L

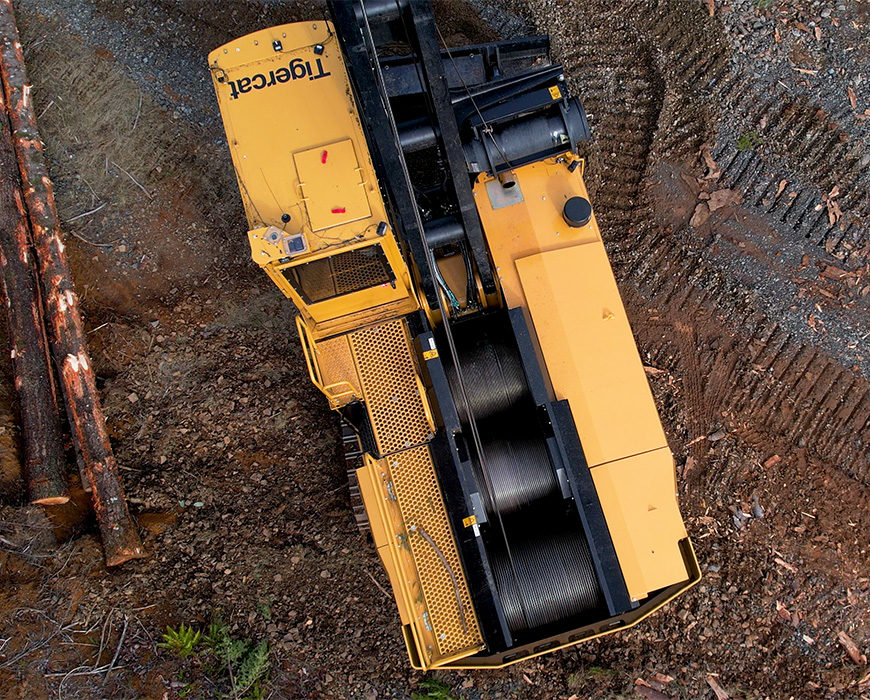

Haulback Winch

DRIVE Independent closed loop hydrostatic
ROPE DIAMETER 16 mm
ROPE STORAGE 1 291 m
MAX LINE SPEED 425 m/min
MAX LINE PULL 8 495 kg

+ ALL

Resources

loader-icon

Thriving in El Dorado


J&R has grown from a small business to a large-scale California producer. In addition to harvesting and hauling, the company has steered into postharvest site preparation and road building. Robert D’Agostini Jr. and Saul Jimenez walk us through the operations.


Tigercat Enters Yarding Niche with 180


Tigercat builds the first model for cable logging operations.

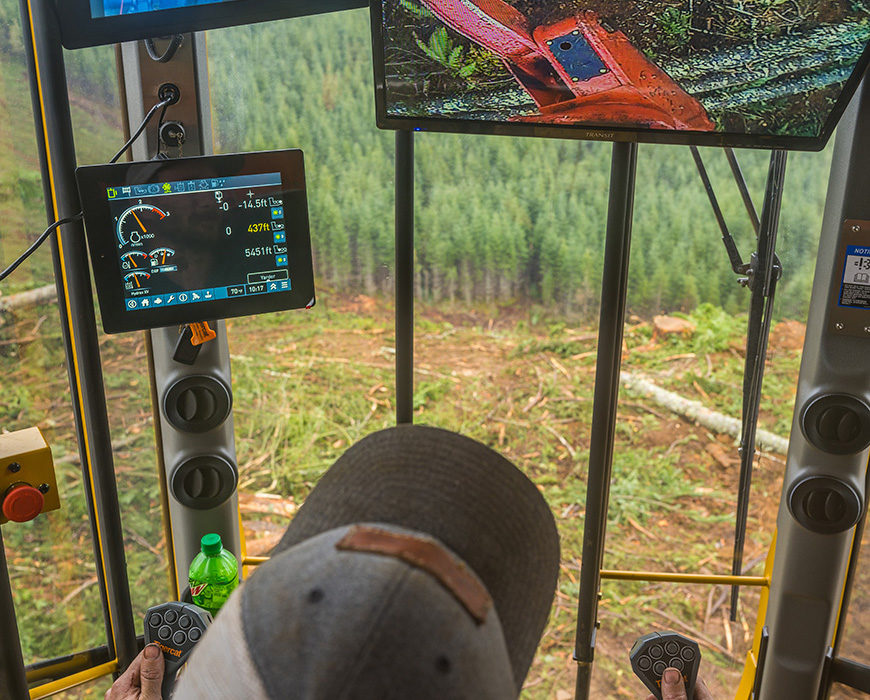

180 Yarder Contour Mapping System


Watch this video to learn about the 180 yarder Contour Mapping system, and how to build a map with up to 15 coordinate points. Contour Mapping automatically controls the height of the carriage as it travels up and down the slope.
