Tigercat 1165 Harvester | Wheel Harvester

Product Specifications

Metric

Imperial

Dimensions

LENGTH less boom	8 220 mm
LENGTH less boom	323 in
WHEELBASE	4 520 mm
WHEELBASE	178 in
WIDTH	2 715 mm
WIDTH	107 in
HEIGHT	4 055 mm
HEIGHT	160 in
HEIGHT transport	3 850 mm
HEIGHT transport	152 in
GROUND CLEARANCE	655 mm
GROUND CLEARANCE	26 in
FRAME ARTICULATION	+/-44°
FRAME OSCILLATION	+/-18, proportional balance, lockable
MIN WEIGHT less attachment	22 900 kg
MIN WEIGHT less attachment	50,500 lb
LEVELING cab/crane	18° forward, 24° rear, +/-18° side

Power

ENGINE Stage V	Tigercat FPT N67 Stage V 210 kW (282 hp) @ 2000 rpm 1170 Nm (863 ft-lb) @ 1700 rpm
ENGINE Tier 4f	Tigercat FPT N67 Tier 4f 210 kW (282 hp) @ 2,000 rpm 1160 Nm (860 ft-lb) @ 1,500 rpm
ENGINE Tier 2	Tigercat FPT N67 Tier 2 210 kW (282 hp) @ 2000 rpm 1170 Nm (863 ft-lb) @ 1700 rpm
ENGINE Non-certified	Tigercat FPT N67 Non-certified 210 kW (282 hp) @ 2,000 rpm 1160 Nm (860 ft-lb) @ 1,500 rpm
COOLING	Side-by-side radiator, oil cooler and charge air cooler
FAN	Hydraulically driven, automatic variable speed with automatic reversing cycle
FUEL CAPACITY	454 L
FUEL CAPACITY	120 US gal
DEF CAPACITY	80 L
DEF CAPACITY	21 US gal

Power Train

TRANSMISSION	Tigercat wideRANGE® drive Variable speed hydrostatic (2) piston motors, infinitely variable
AXLES front/rear	14 t (15.4 tn) rated bogie
DIFFERENTIAL LOCKS	Independent front and rear, friction clutch style
TOP SPEED	11,1 km/h
TOP SPEED	6.9 mph

Hydraulic System

PUMP, DRIVE	Piston, closed loop
PUMP, HARVESTING HEAD	Piston
PUMP, CRANE	Piston
PUMP, FAN	Piston
PUMP, CHARGE/COOLING	Gear
FILTRATION	(7) Spin-on
RESERVOIR	200 L
RESERVOIR	53 US gal

Brakes

DYNAMIC BRAKING	Hydrostatic, enclosed, oil cooled
SECONDARY BRAKES	Enclosed, oil cooled
PARK BRAKE	Spring applied, hydraulic release

Tires

TIRES 6WD	600/55-26.5 (front) 600/65-34 (rear)
Optional	710/45-26.5 (front) 700/55-34 (rear)
TIRES 8WD	600/55-26.5
Optional	710/45-26.5

Crane

STANDARD	Tigercat H275ER91, ER®, fixed stick
MAXIMUM REACH bare pin	9,100 mm
MAXIMUM REACH bare pin	29 ft 10 in
LIFT TORQUE gross	275 kNm
LIFT TORQUE gross	202,830 lbf-ft
SLEW TORQUE gross	56 kNm
SLEW TORQUE gross	41,300 lbf-ft
OPTIONAL	H275ER92T telescopic H275ER100T telescopic H275ER110T telescopic
ROTATION	360° continuous

Electrical

BATTERY	(2) 950 CCA, 12 v
ALTERNATOR	140 amp, 24 v
SYSTEM VOLTAGE	24 v
LIGHTING	(23) LED (2) LED service lights

Operator's Station

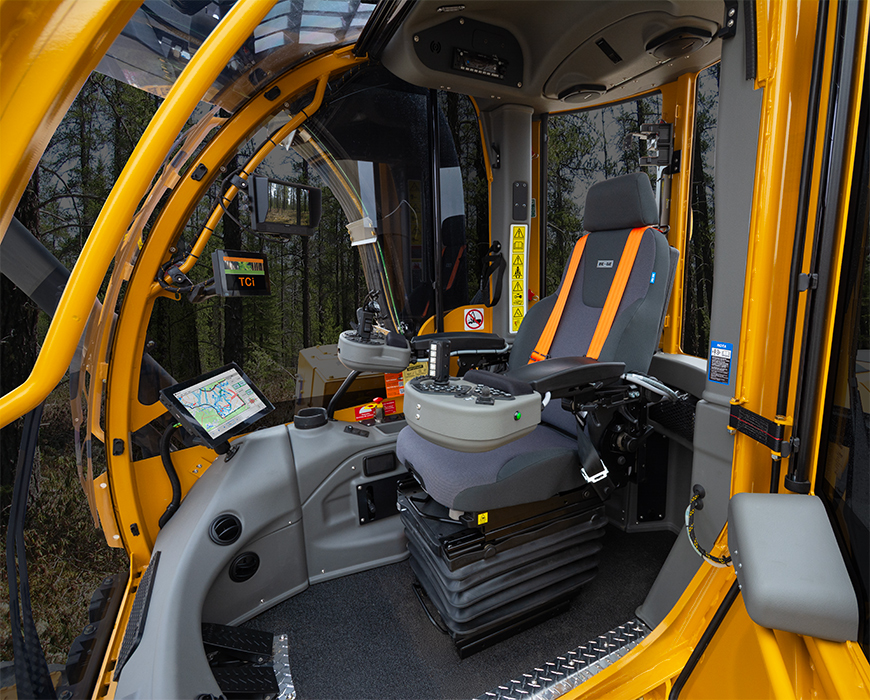

CAB	Pressurized, insulated and isolation mounted with constant temperature A/C and heater Thermal formed curved windshield, UL752 level 1 tested Thermal insulated polycarbonate windows Window blinds 2 exits Computerized machine monitoring system AM/FM digital stereo with CD player Bluetooth® audio and hands-free calling RearVIEW camera system
SEAT	Air ride, extreme duty fully adjustable with lumbar support and armrests
OPERATOR CONTROLS	Mini lever, electric over hydraulic for crane and head Electronic control for other machine functions Mini lever, electronic for steering Electronic control system with LCD colour touchscreen for machine monitoring and function adjustment

Harvesting Head

STANDARD	H275ER91 crane for heads up to 1 650 kg (3,640 lb)
OPTIONAL	H275ER92T crane for heads up to 1 650 kg (3,640 lb) H275ER100T crane for heads up to 1 400 kg (3,085 lb) H275ER110T crane for heads up to 1 100 kg (2,425 lb)

Other Equipment

STANDARD	LogOn™ local wifi machine monitoring system Vacuum pump Electric hydraulic fill pump Electric/hydraulic hood and fuel tank tilt
OPTIONAL	RemoteLog® telematics system Eight-wheel drive configuration Engine/cab/hydraulic heater Block heater Hydraulic reservoir heater GPS receiver Stump spray equipment Colour marking Road lights SiriusXM® radio ready

Get the most out of your Tigercat harvesting head. The Tigercat D7 Control System combines a solid and field proven hardware and bucking control system with a Tigercat developed head control and user interface. The system offers powerful functionality, simplicity and intuitive operator navigation.

LEARN MORE

Virtual Operator Training

Keep your fleet of machines producing at full capacity while you train new operators virtually. The Tigercat Simulator provides a virtual operator training solution with an ultra-realistic operating environment. The advanced system is capable of simulating the controls and operation of several Tigercat machines including a track feller buncher, roadside processor, forwarder, or harvester.

LEARN MORE

Resources

Mossfeldt Skogtransporter Drawn to the Forest

09 November 2022

Jorge Victoria lands in the town of Ekshärad in central Sweden, visiting the Mossfeldt family to talk about their history, operations, and experience with Tigercat equipment.

Thumbnail image of The Story of Mossfeldt article

First 1165 Harvester in Sweden

04 May 2021

Swedish contractor and long time Tigercat customer relates his views on the 1165 harvester.

Tigercat CTL

04 May 2021

Tigercat cut-to-length VP Jon Cooper talks about Tigercat’s latest developments in the CTL arena.

Traction Aids and Tire Maintenance

21 November 2022

Traction aids can improve machine performance in adverse terrain. The trick is to understand all variables and choose a configuration that provides the performance benefits without sacrificing tire lifespan, or risking damage to the machine drivetrain system.

(8) 600/55-26.5 (narrow)	Overall width: 2 715 mm
(8) 600/55-26.5 (narrow)	Overall width: 107 in
(8) 710/45-26.5 (narrow)	Overall width: 2 940 mm
(8) 710/45-26.5 (narrow)	Overall width: 116 in
(8) 710/45-26.5 (wide)	Overall width: 3 135 mm
(8) 710/45-26.5 (wide)	Overall width: 124 in
(4) 600/55-26.5 (2) 600/65-34 (narrow)	Overall width: 2 715 mm
(4) 600/55-26.5 (2) 600/65-34 (narrow)	Overall width: 107 in
(4) 710/45-26.5 (2) 710/55-34 (narrow)	Overall width: 2 940 mm
(4) 710/45-26.5 (2) 710/55-34 (narrow)	Overall width: 116 in
