1075C Forwarder

Product Specifications

Metric

Imperial

Dimensions

LENGTH	10,26 m
LENGTH	33 ft 7 in
With optional 2600/2400	10,87 m
With optional 2600/2400	35 ft 8 in
With optional 3160/2400	11,42 m
With optional 3160/2400	37 ft 6 in
WHEELBASE	6,01 m
WHEELBASE	19 ft 9 in
With optional 2600/2400	6,01 m
With optional 2600/2400	19 ft 9 in
With optional 3160/2400	6,57 m
With optional 3160/2400	21 ft 7 in
WIDTH	3,06 m
WIDTH	10 ft
HEIGHT	3,85 m
HEIGHT	12 ft 8 in
GROUND CLEARANCE	730 mm
GROUND CLEARANCE	29 in
WEIGHT	27 500 kg
WEIGHT	60,600 lb

Power

ENGINE Stage V	Tigercat FPT N67 226 kW (304 hp) @ 2,100 rpm (rated) 235 kW (315 hp) @ 2,000 rpm (peak)
ENGINE Tier 4f	Tigercat FPT N67 222 kW (298 hp) @ 2,100 rpm (rated) 230 kW (308 hp) @ 2,000 rpm (peak)
ENGINE Tier 2	Tigercat FPT N67 205 kW (275 hp) @ 2,100 rpm (rated) 230 kW (308 hp) @ 2,000 rpm (peak)
ENGINE Non-certified	Tigercat FPT N67 222 kW (298 hp) @ 2,100 rpm (rated) 230 kW (308 hp) @ 2,000 rpm (peak)
AIR FILTRATION	2-stage engine air cleaner
COOLING	Side-by-side aluminum radiator, oil cooler, charge air cooler
FAN	Hydraulically driven Automatic variable speed with manual reversing cycle
FUEL CAPACITY	387 L
FUEL CAPACITY	102 US gal
Optional	231 L
Optional	61 US gal
DEF CAPACITY	46 L
DEF CAPACITY	12 US gal

Power Train

TRANSMISSION	2-Speed hydrostatic mechanical transmission Piston motor, infinitely variable
Optional	Tigercat wideRANGE® drive Variable speed hydrostatic (2) Piston motors, infinitely variable
AXLES front/rear	20 t (22 tn) long arm bogie
Optional	20 t (22 tn) Tigercat bogie, outboard planetary
DIFFERENTIAL LOCKS	Independent front and rear, friction clutch style Engage while travelling

Top Speed

LOW RANGE	0-5,4 km/h
LOW RANGE	0-3.3 mph
HIGH RANGE	0-17 km/h
HIGH RANGE	0-10.5 mph
WIDERANGE	0-9,1 km/h
WIDERANGE	0-5.6 mph

Hydraulic System

PUMP, DRIVE	Piston, closed loop
PUMP, MAIN	Piston
FILTRATION	(5) spin-on, 7 micron full flow
CYLINDERS, STEER	(2) 100 mm (4 in) bore
CYLINDERS, BLADE	(2) 90 mm (3.5 in) bore
RESERVOIR	138 L
RESERVOIR	36 US gal

Brakes

SECONDARY BRAKES	Enclosed, oil cooled
PARK BRAKE	Spring applied Enclosed
SERVICE BRAKE	Hydrostatic Enclosed, oil cooled

Tires

FRONT/REAR	750/55-26.5
Optional	710/55-28.5 780/50-28.5 54x37-25

Crane

STANDARD	Tigercat F165T85 with telescopic stick
REACH	8,5 m
REACH	27 ft 11 in
LIFT TORQUE gross	165 kN-m
LIFT TORQUE gross	121,700 lbf-ft
SLEW TORQUE gross	43 kN-m
SLEW TORQUE gross	31,715 lbf-ft
OPTIONAL	Mesera M142FT100i
REACH	9,96 m
REACH	32 ft 8 in
LIFT TORQUE gross	178 kN-m
LIFT TORQUE gross	131,285 lbf-ft
SLEW TORQUE gross	48 kN-m
SLEW TORQUE gross	35,405 lbf-ft
OPTIONAL 2	Tigercat F195T85 with telescopic stick
REACH	8,5 m
REACH	27 ft 11 in
LIFT TORQUE gross	195 kN-m
LIFT TORQUE gross	143,825 lbf-ft
SLEW TORQUE gross	55 kN-m
SLEW TORQUE gross	40,565 lbf-ft

Grapple

STANDARD	Hultdins SG360S
OPTIONAL	Hultdins SG420S Tigercat FG43 Tigercat FG53
ROTATOR	Indexator GV17 MPB (Standard Mesera crane)
Optional	Tigercat heavy duty (Available with Tigercat F165T85 crane only)

Wagon Frame

CAPACITY	20 000 kg
CAPACITY	44,090 lb
STANDARD	2600/1800
LOAD LENGTH	4,4 m
LOAD LENGTH	14 ft 5 in
OPTIONAL	2600/2400
LOAD LENGTH	5 m
LOAD LENGTH	16 ft 5 in
OPTIONAL 2	3160/2400
LOAD LENGTH	5,56 m
LOAD LENGTH	18 ft 3 in

Bunk System

STANDARD	Level load, telescopic
WIDTH minimum	3 m
WIDTH minimum	9 ft 10 in
LOAD AREA minimum	4,5 m²
LOAD AREA minimum	48 ft²
WIDTH maximum	4,26 m
WIDTH maximum	14 ft
LOAD AREA maximum	6,25 m²
LOAD AREA maximum	67 ft²
GATE	Expandable, swing-out
WIDTH minimum	3,05 m
WIDTH minimum	10 ft
WIDTH maximum	4,15 m
WIDTH maximum	13 ft 7 in
OPTIONAL	Level load, telescopic
WIDTH minimum	3,0 m
WIDTH minimum	9 ft 10 in
LOAD AREA minimum	4,5 m²
LOAD AREA minimum	48 ft²
WIDTH maximum	4,4 m
WIDTH maximum	14 ft 5 in
LOAD AREA maximum	7,2 m²
LOAD AREA maximum	77 ft²
GATE	Expandable, swing-out
WIDTH minimum	3,05 m
WIDTH minimum	10 ft
WIDTH maximum	4,15 m
WIDTH maximum	13 ft 7 in
OPTIONAL 2	low-wide®, telescopic
WIDTH minimum	3,0 m
WIDTH minimum	9 ft 10 in
LOAD AREA minimum	5,1 m²
LOAD AREA minimum	55 ft²
WIDTH maximum	3,72 m
WIDTH maximum	12 ft 2 in
LOAD AREA maximum	6,25 m²
LOAD AREA maximum	67 ft²
GATE	Expandable, swing-out
WIDTH minimum	3,05 m
WIDTH minimum	10 ft 0 in
WIDTH maximum	3,71 m
WIDTH maximum	12 ft 2 in
OPTIONAL 3	low-wide®, telescopic
WIDTH minimum	3 m
WIDTH minimum	9 ft 10 in
LOAD AREA minimum	5,1 m²
LOAD AREA minimum	55 ft²
WIDTH maximum	4,41 m
WIDTH maximum	14 ft 6 in
LOAD AREA maximum	7,5 m²
LOAD AREA maximum	80 ft²
GATE	Expandable, swing-out
WIDTH minimum	3,05 m
WIDTH minimum	10 ft
WIDTH maximum	4,15 m
WIDTH maximum	13 ft 7 in

Electrical

BATTERY	(2) 1000 CCA, 12 v
ALTERNATOR	140 amp, 24 v
SYSTEM VOLTAGE	24 v
LIGHTING	(21) LED

Operator's Station

CAB	Low noise, insulated and isolation mounted Pressurized constant temperature A/C and heater Window blinds Pull-down sun visors Front/Rear wipers and washers (2) Emergency exits Rear cab guard AM/FM digital stereo and auxiliary input port Bluetooth® audio and hands-free calling
SEAT	Air ride, extreme duty, fully adjustable rotating with lumbar support and armrests Heated seat
Optional	Air ride, extreme duty, fully adjustable rotating with lumbar support and armrests Air adjustable upper/lower lumbar supports and back/side supports Adjustable damper Adjustable headrest Heated and ventilated
OPERATOR CONTROLS	Electronic for all functions Mini-joystick for steering Electronic control system with colour LCD display screen for machine monitoring and function adjustment

LogOn™ local wifi machine monitoring system

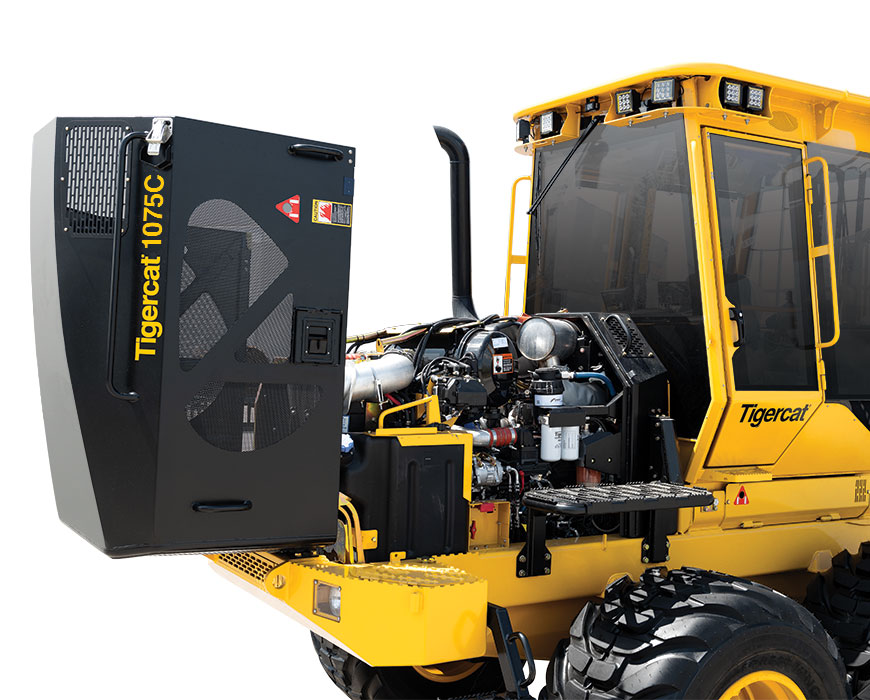

Tilting cab and engine cover
(2) Fire extinguishers
Fuel heater (24 v)
Fuel/water separator
Vacuum pump
Dual oscillation locks
Forestry duty enclosures and covers

OPTIONAL

RemoteLog® telematics system
F30 productivity monitoring system
Payload bunk scales
Engine block heater, 120 v
Coolant/hydraulic heater, diesel
Electric fuel fill pump, 24 v
Biodegradable hydraulic oil
Side window wipers
Road lights
Camera system, front/rear
Snow blade
Tail extension 600 mm (24 in)
Tire pressure monitoring system (TPMS)
SiriusXM satellite radio
Fire suppression system
Booster cables
Spare wheel assembly
Step extension, bolt-on
Food heater
High visibility gate
Horizontal moving gate, 600 mm (24 in) fore/aft
